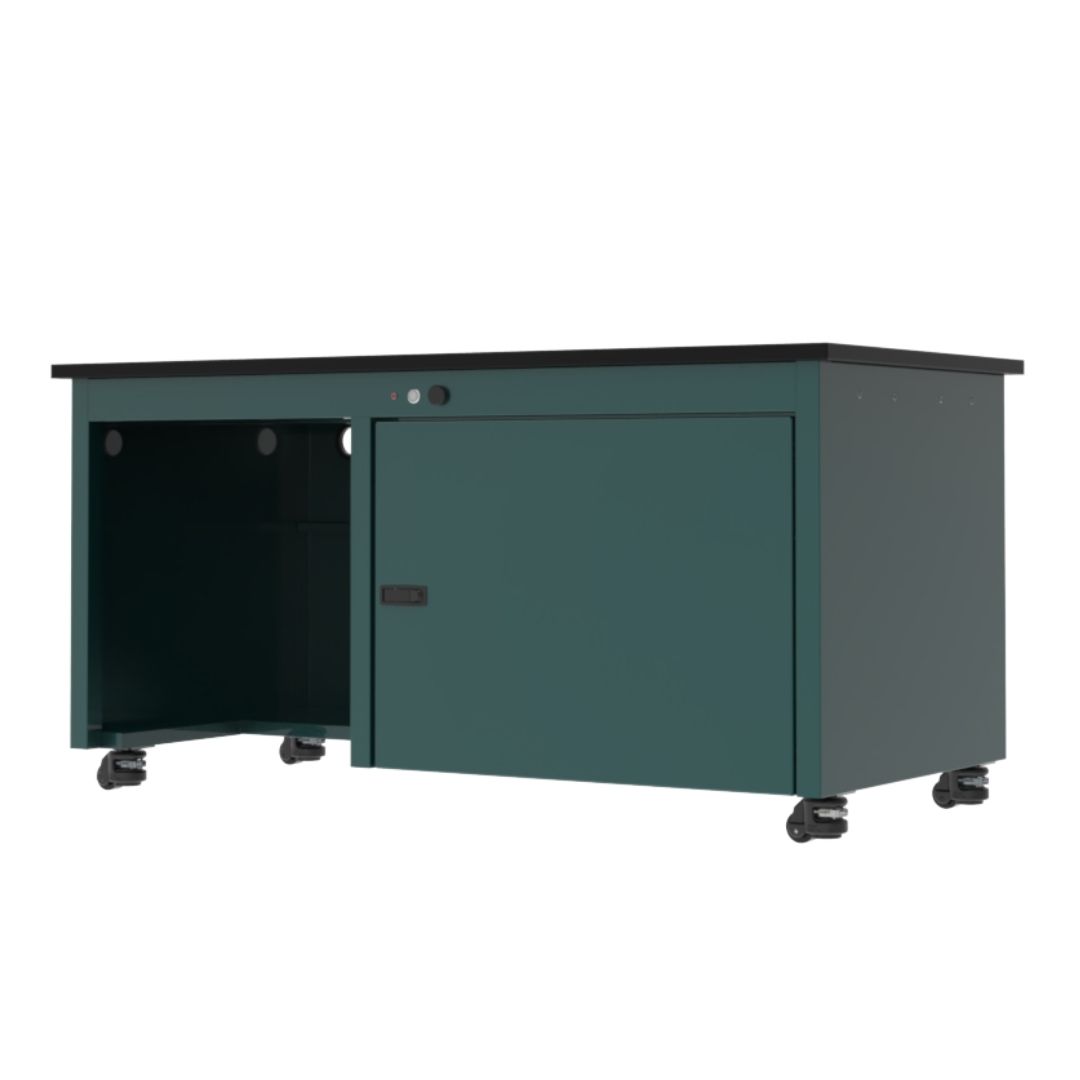

Work Bench Side 2

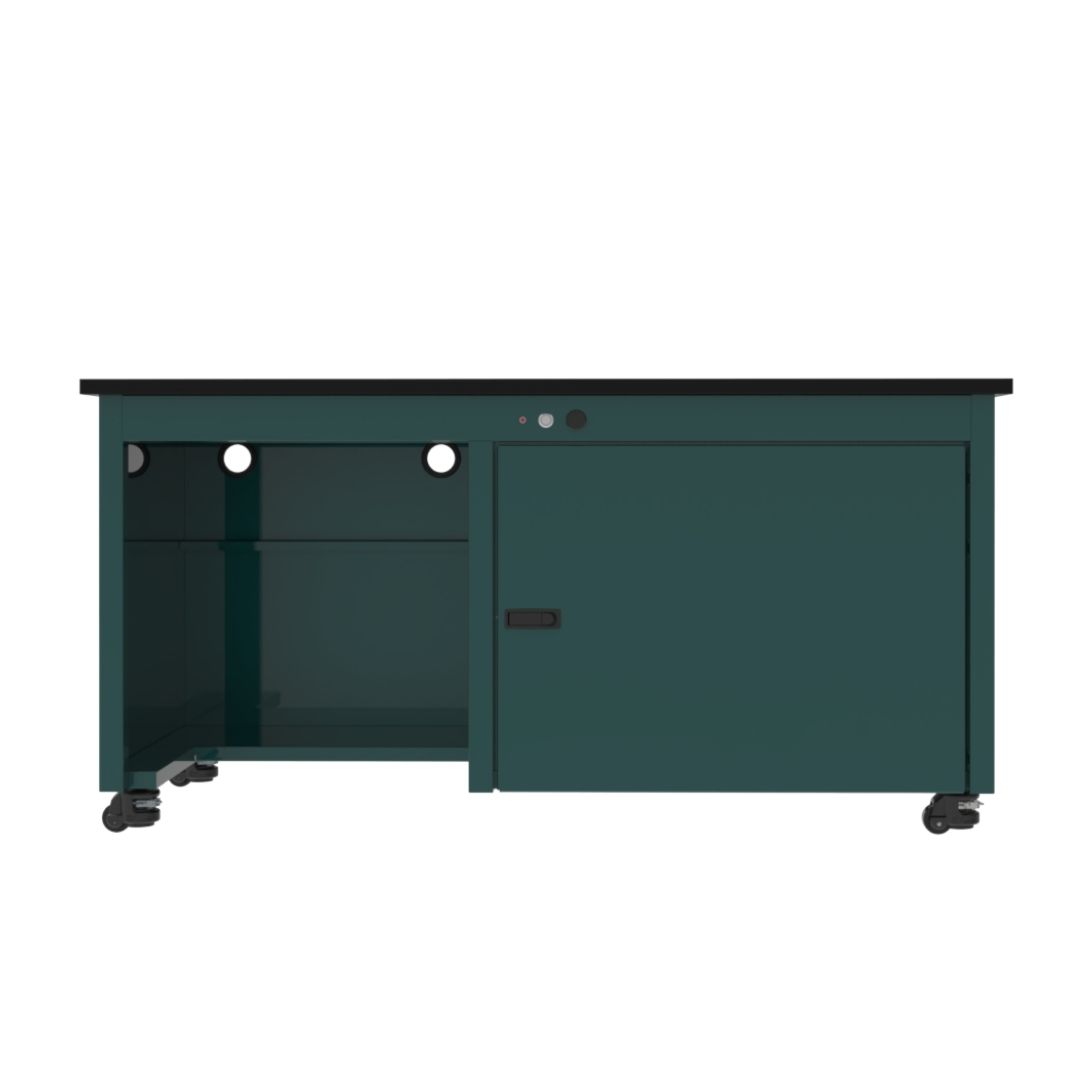

Work Bench Front

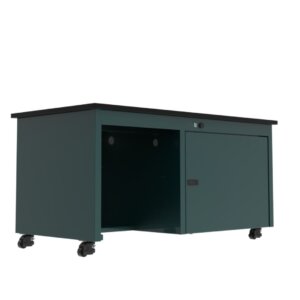

Work Bench Side

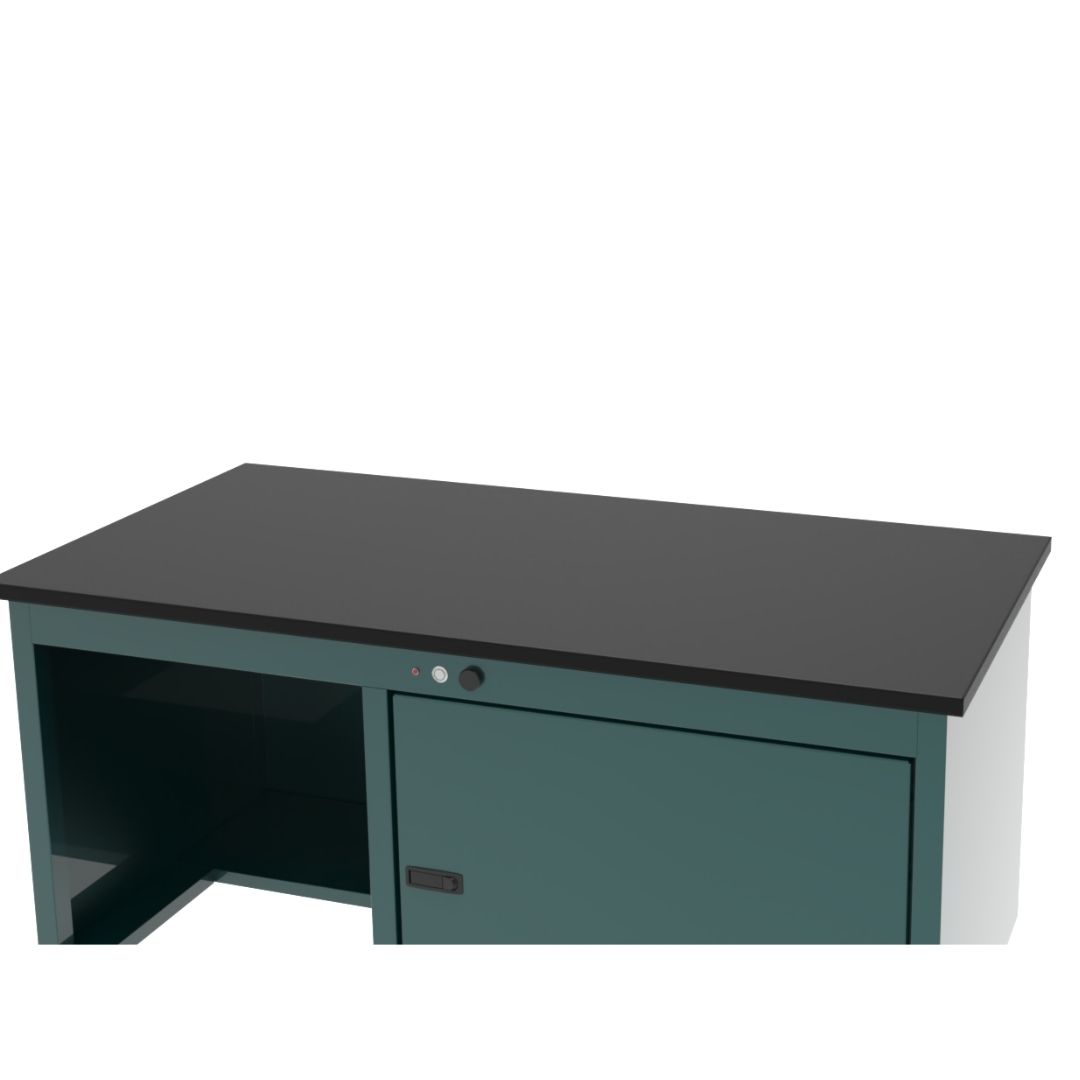

Work Bench Hover

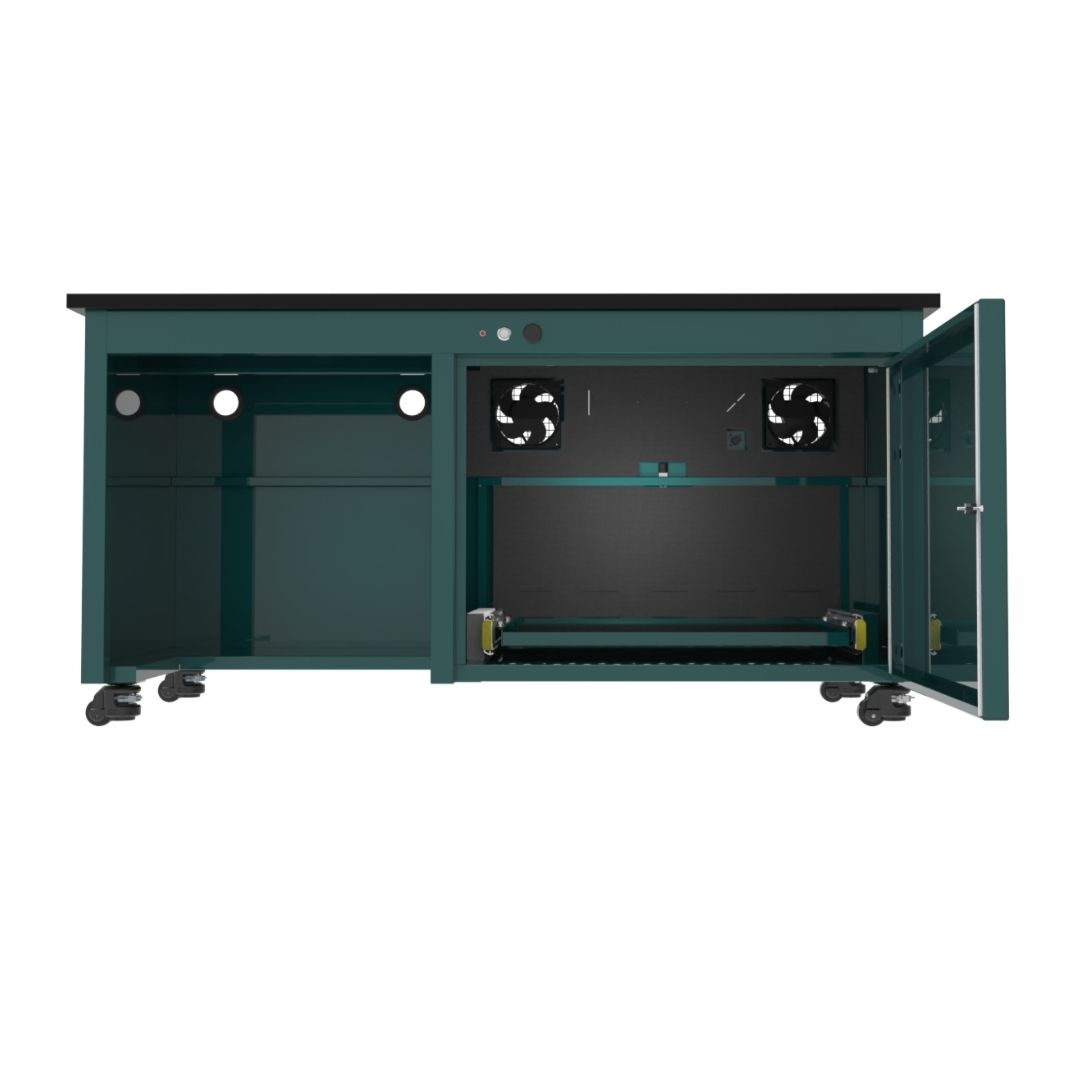

Work Bench Open

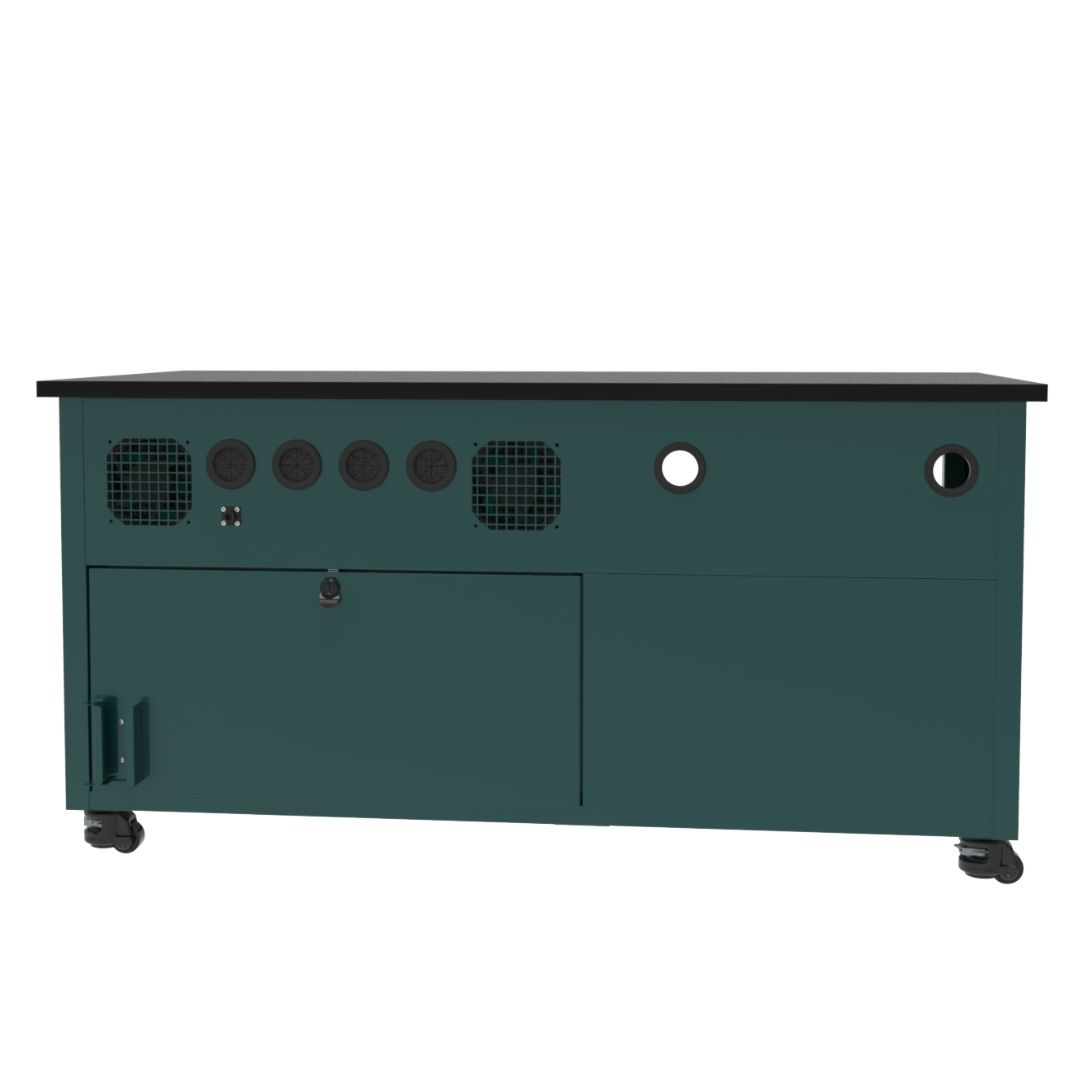

Work Bench Back
Full Screen


Customize Your ‘Work’ Bench For A Quote



The Work Bench model is our most basic mass spec workbench with additional workspace next to the pump enclosure. The model comes with a lower half-depth shelf and (2) grommet holes in the knee space as standard.

All Work Bench configurations are compatible with our suspended cabinets, with limits on how wide and tall the suspended cabinets can be. The cabinets will be mounted 4” from the top surface. In addition, the Work Bench model is available in both GC and LC kit configurations.


  • Standard 1″ Lab Grade Phenolic Resin (Black) & Top Tray Surface
  • Pull Out & Locking Pump Tray: 23.5” (W) x 21” D
  • Sound Dampening Foam
  • Temperature Sensors & Fail-Safe Alarm
  • Rear Mounted Power Supply
  • LED Light Start/Stop Switch
  • (2) 205 CFM Fans
  • (4) Grommet Holes
  • GDR Casters
  • Compatible in GC & LC Kit Configurations
  • Removable Back Door
  • 5 Year Warranty

Technical Specs

  • Item: ‘Work’ Bench
  • Height: 30″, 33″, 36″
  • Width: 60″, 72″, 84″, 96″
  • Depth: 30″, 34″
  • Work Surface: 1″ Lab Grade Phenolic Resin (Black)
  • Frame Material: Cold Rolled Steel (Powder Coated)
  • Assembly: Fully Welded
  • Weight Range: 494.38-755.63 lbs (varies based on configuration)
  • ESD Compatible: N/a
  • Cleanroom Compatible: N/a

SEFA-8 Certification

All OnePointe Solutions designed laboratories, laboratory furniture, and laboratory equipment are delivered to your lab having met the exceptionally high standards set by boards of laboratory professionals in order to be SEFA compliant so as to ensure a safe laboratory environment.

SEFA-8 Metal Test Report

SEFA-8 PLAM Test Report
