METAL LAB CABINETS

USA MADE

LAB READY

BUILT TO LAST

TRIED AND TRUE. METAL CABINETS NEVER FAIL WHEN IT COMES TO LABORATORIES.

At OnePointe Solutions, our metal cabinets and casework are fully welded and include a 5 year warranty. We include soft-close hinges and drawer slides on all cabinets and lab benches. We over a range of powder coat finishes which are SEFA tested and give your lab beauty like it has not seen before.

METAL CABINET GAUGES

16 GAUGE

• Cabinet Tops

• Top & Intermediate Channels

16 GAUGE

• Cabinet Tops

• Top & Intermediate Channels

18 GAUGE

• Cabinet Gables

• Bottoms

• Toekicks

• Outer Door & Drawer Front Panels

• Table Frames

• Filler Panels

• Sloping Tops

• Cabinet Leveler Support

18 GAUGE

• Cabinet Gables

• Bottoms

• Toekicks

• Outer Door & Drawer Front Panels

• Table Frames

• Filler Panels

• Sloping Tops

• Cabinet Leveler Support

20 GAUGE

• Drawer Bodies

• Shelves

• Door & Drawer Liners

• Removable Backs

• Drawer Suspension

• Hinge Plates

• Shelf Clips

20 GAUGE

• Drawer Bodies

• Shelves

• Door & Drawer Liners

• Removable Backs

• Drawer Suspension

• Hinge Plates

• Shelf Clips

TYPES OF METAL CABINETS & CONFIGURATIONS

Notes:

  • All dimensions listed in inches.
  • Cabinet configurations with 2 or more doors should not be less than 30″ wide
  • Cabinets with only 1 door cannot be more than 24″ wide
  • All heights DO NOT include countertop thickness. Please add that to the cabinet height to determine your final bench height.

LAB BASE CABINETS

Base cabinets are standard floor-mounted casework, without any epoxy resin sinks, corner placement, or another mounting. This is often referred to as a lab bench, though the term is used by some to instead refer to table frames with epoxy tops.

Height: 29, 32, 35, 41

Width: 12, 15, 18, 21, 24, 30, 36, 42, 48

Depth: 18, 22

Locks: Yes/No

TALL CABINETS

Tall cabinets offer the greatest vertical reach, and are great storage units for reagents and specimens.
Height: 29, 32, 35, 41

Width: 12, 15, 18, 21, 24, 30, 36, 42, 48

Depth: 13, 16, 18, 22

Locks: Yes/No

Fronts: Solid/Clear Acrylic

WALL SHELVING

Mounted wall shelves, able to span entire rooms if necessary.
Height: 18, 24, 30, 36, 42, 48

Width: 26, 32, 38, 44, 50, 56, 62, 68, 74,

80, 86, 92, 98, 104, 110, 116, 122, 128, 134,

140, 146, 152, 158, 164

Depth: 13, 16

Shelf Qty: 1, 2, 3

APRON

Sturdy steel panel to support stretches of countertops without base cabinets underneath.
Height: 04, 02

Width: 24-80 (1 INCH INCREMENTS)

Depth: 18, 22, 29

Drawer: 0, 1, 2

Locks: Yes/No

SINK CABINETS

Similar in all ways except this type of lab casework has undermount, drop-in, or integral sinks in the tops. These can be epoxy resin drop-in or undermount, and stainless steel or solid surface integrals. While usually present in a run of base cabinetry, a sink cabinet can be placed a the end cap of a lab island to create an easily-accessible workstation.
Height: 29, 32, 35, 41

Width: 30, 36, 42, 48

Depth: 18, 22

Configurations: 2 Door Only

Locks: Yes/No

MOBILE CABINETS

Most commonly used for underneath benches and desks, mobile cabinets are extremely high-quality solutions for modular labs that require flexibility for both research and education.
Height: 22, 25, 28, 31, 34, 37

Width: 12, 15, 18, 21, 24, 30, 36, 42, 48

Depth: 19, 22

Locks: Yes/No

MODULAR REAGENT SHELVING

This type of shelving is commonly found attached to lab islands, and can be moved up and down by clicking into slotted uprights.
Height: 48

Width: 26, 32, 38, 44, 50, 56, 62, 68, 74,

80, 86, 92, 98, 104, 110, 116, 122, 128, 134,

140, 146, 152, 158, 164

Shelf Qty: 1, 2

SERVICE CHASE

We can build all tables, benches, and islands with service chases that can provide connections for data, power, gas, and plumbing to the wall, floor, and ceiling outlets.
Height: 61-95 (1 INCH INCREMENTS)

Width: 12. 14, 16, 18, 20, 22, 24

Depth: 6, 8, 10

WALL CABINETS

As the name implies, these are your standard wall mounted casework. Alternatively, these can be placed mounted to uprights as upper cabinetry for workbenches and islands.
Height: 18, 24, 30, 36, 42, 48

Width: 12, 15, 18, 21, 24, 30, 36, 42, 48

Depth: 13, 16

Locks: Yes/No

Doors: Hinged/Sliding

Fronts: Solid/Clear Acrylic

SUSPENDED CABINETS

Suspend cabinets are fixed to the underside of our workbenches and islands. These are easy to reach at arms length, but are fixed in place and sacrifice the modularity of mobile cabinets.
Height: 05, 08, 11, 14, 17, 20, 23, 26,

29, 32, 35

Width: 12, 15, 18, 21, 24, 30, 36, 42, 48

Depth: 19, 22

Locks: Yes/No

FIXED REAGENT SHELVING

These island shelves are fixed in place. Once installed, they cannot be moved without disassembling the island.
Height: 12, 24, 36

Width: 34-166 (6 INCH INCREMENTS)

Depth: 12, 18, 24

Lips: Yes/No

SCIENTIFIC CASEWORK BROCHURE

Our laboratory casework brochure goes in-depth on the types of available configurations, dimensions etc.
Download

SEFA-8 TESTING

At OnePointe Solutions, the metal we use in our casework is SEFA-8 tested to meet the standards for laboratory casework use.

POWDER COAT OPTIONS

White

RAL 9016

Papyrus White

RAL 9018

Oyster White

RAL 1013

Light Ivory

RAL 1015

Stone Grey

RAL 7030

Biege Grey

RAL 7006

Light Grey

RAL 7035

Window Grey

RAL 7040

Basalt Grey

RAL 9016

Jet Black

RAL 9005

Black Red

RAL 3007

Green Blue

RAL 5001

Gentian Blue

RAL 5010

Blue Green

RAL 6004

Flame Red

RAL 3000

Stainless

Need A Custom Color?

What color do you want? Red? Blue? White? We’ll help you get any color in the color wheel (and even those that aren’t).

Our fabrications can be faced with a wide selection of hues and finishes, from bold to subdued.

*Note that some colors require a minimum order.*

RAL Color Brochure

Sometimes it’s hard to imagine what colors will look like in realtime for your lab furniture. No worries, we handled that for you.

Check out our color brochure to see how colors will appear on furniture before you choose.

*Note some colors on screen may vary fro how they will appear on product*



COUNTERTOPS

Chemicals, moisture, heat, and impact can all vary greatly from project to project. From stainless steel, to phenolic resin and epoxy resin, we offer chemical and odor resistant finishes that endure spills and stave off corrosion.

Every lab is different. If you have a surface in mind, we can help.

If you need help, we can suggest an optimal surface.

Epoxy Resin

Epoxy resin is the ideal solution for environments that have high possibilities of corrosion or moisture.
EXPLORE

phenolic resin

Phenolic resin meets the requirements of most laboratories with the added benefit of being chemical-, wear-, and water-resistant.
EXPLORE

stainless steel

As a nonporous surface, nothing can penetrate into this material. Bacteria, mold, and other common germs don’t stand a chance.
EXPLORE

ESD LAMINATE

ESD Laminate is specifically designed to prevent the discharge of built-up static electricity that can damage sensitive equipment.
EXPLORE

MAPLE BLOCK

In the material handling business, there’s no better than maple block. Maple works hard in factories, in kitchens, and on shipping and receiving docks around the world.
EXPLORE

HDPE

High-density polyethylene is lightweight, non-absorbent, and stain-free surface. HDPE is best used for food preparation.
EXPLORE

solicor-cr

Solicor-CR is a lab-grade surface material well suited for environments, where chemical resistance, durability and aesthetics are top priorities.
EXPLORE

solid surface

Wilsonart® Solid Surface countertops are great for use in many settings: office, retail, industrial, healthcare, or education and in certain laboratory settings. It is nonporous, seamless, and elegant.
EXPLORE

quartz

Quartz countertops are favored by designers in various commercial industries since quartz can easily withstand extended use, regular cleaning, and exposure to moderate heat, moisture, and most household/commercial cleaners. For more information contact us.

Granite

Granite countertops are an elegant, timeless, and extremely durable surface option. They bring any commercial or industrial space to life with its many colors and smooth finish. For more information contact us.

Corian

If you have never heard of solid surface, you may have heard of ‘Corian®’, the name of the original solid surface formula created by a DuPont in 1964. Works in the same settings just as solid surface for a countertop option.
EXPLORE

plastic laminate

Made to align perfectly with your target aesthetic, layout, and budget. From breakrooms and reception areas to conference rooms, classrooms and even laboratories, plastic laminate countertops complement virtually any environment it is in.
EXPLORE

OUR WORK

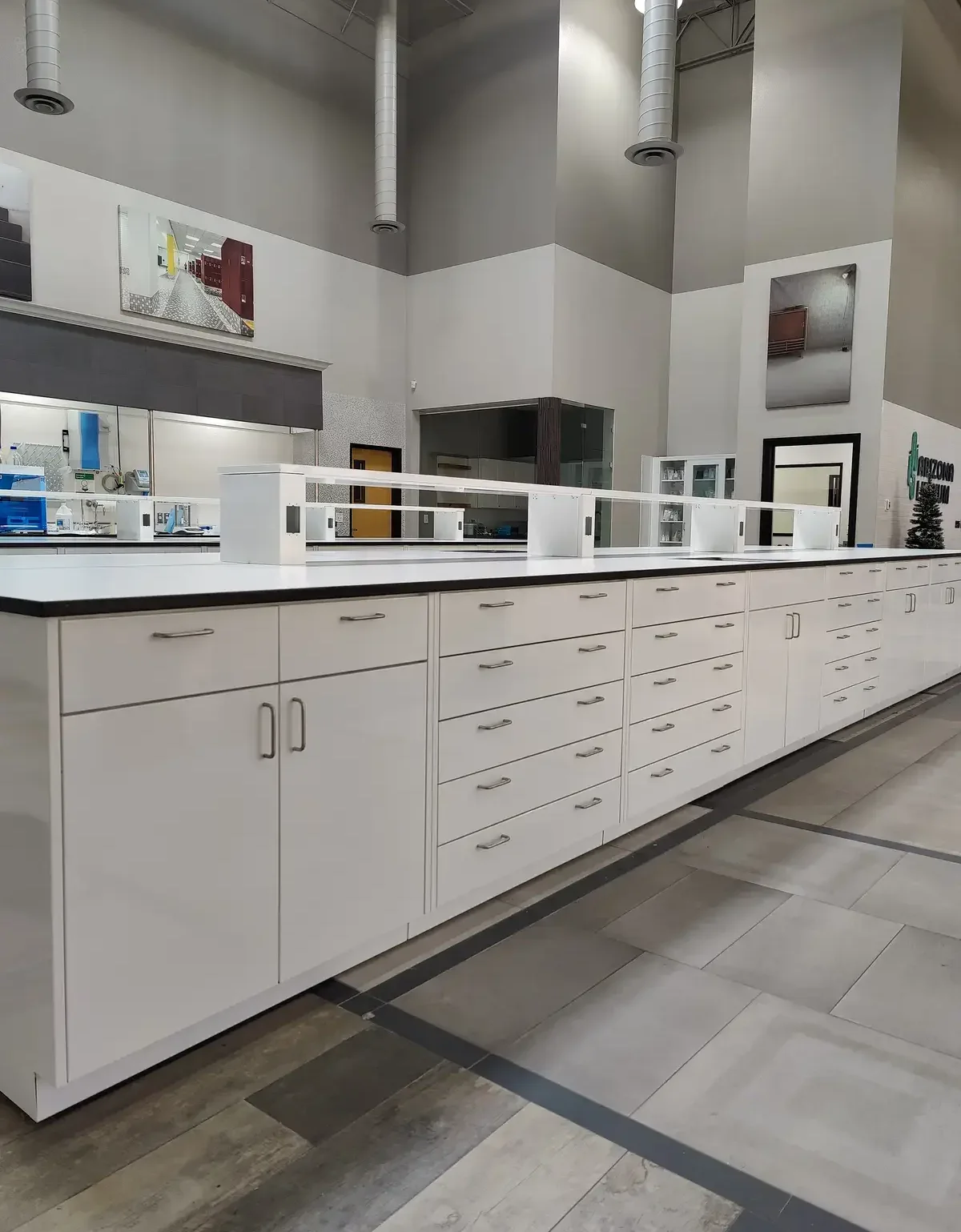

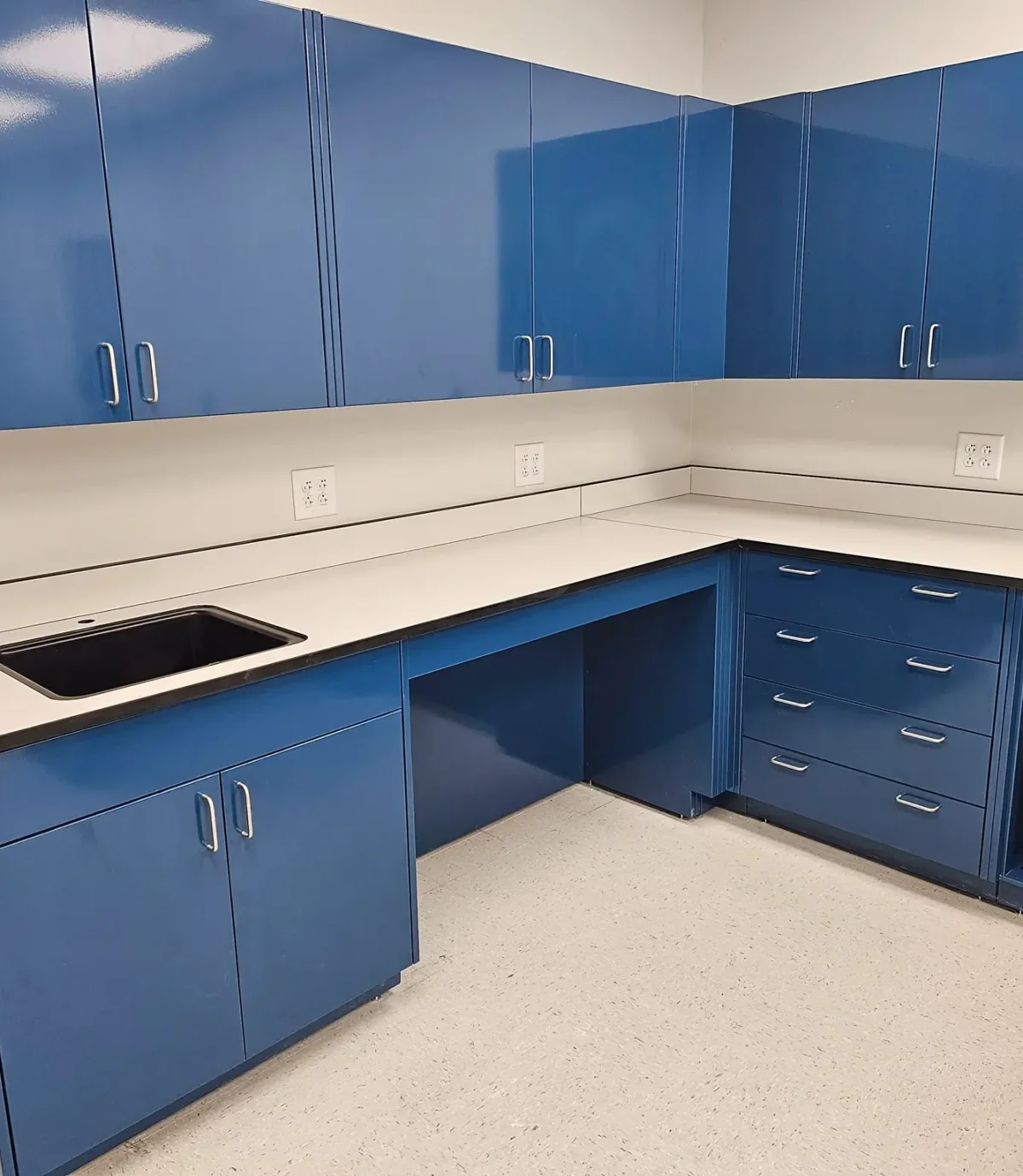

Browse through to see some of our past projects. No project is too big or small for us to handle. From single cabinets to full layouts, our range is limitless. For more pictures of our metal casework, head over to our client gallery.

OUR WORK

Browse through to see some of our past projects. No project is too big or small for us to handle. From single cabinets to full layouts, our range is limitless. For more pictures of our metal casework, head over to our client gallery.

NEED METAL CASEWORK?

OTHER CASEWORK PRODUCTS

CERTIFICATIONS

We take pride in following industry standards of quality and sustainability. All of our products are tested, certified and sourced in a manner consistent with latest guidelines.
