cleanroom cabinets

LAB READY

CUSTOMIZABLE

BUILT TO LAST

Cleanroom cabinets are specialized storage units designed to maintain a controlled environment for sensitive materials and equipment used in scientific research, pharmaceutical manufacturing, and other applications. They are made with materials that meet high standards of cleanliness and can regulate factors like temperature, humidity, and air quality. Cleanroom cabinets play a critical role in preventing contamination and ensuring the accuracy and reliability of experimental results.

TYPES OF cleanroom CABINETS & CONFIGURATIONS

To select a casework option for a quote, click on the desired configuration image below the titles.

Cleanroom cabinets can be manufactured from either powder-coated metal or stainless steel.

Custom and wash-down ready designs are available upon request.

BASE CLEANROOM CABINETS

  • Heights: 29″, 32″, 35″, 41″

  • Widths: 12″, 15″, 18″, 21″, 24″, 30″, 36″, 42″, 48″

  • Depths: 18″, 22″

  • Drawers: 0 to 6

  • Doors: 0 to 2

    • Base cabinets with widths less than 30″ will have 1 door.

    • Base cabinets with widths of 30″ or more will have 2 doors.

  • Door Hinge: Left Hinge, Right Hinge, or Double Door

  • Locks: Yes/No

  • Pulls: Aluminum or Wire Stainless Pull

Base cleanroom cabinets are standard floor-mounted casework. Base cabinets are the true soul of the lab. They set the tone for the space and provide easy access to materials,
tools, or whatever you use in your facility that you need at your disposal.

SINK CLEANROOM CABINETS

  • Heights: 29″, 32″, 35″, 41″

  • Widths: 15″, 18″, 21″, 24″, 30″, 36″, 42″, 48″, 52″, 58″

  • Depths: 18″, 22″

  • Doors: 1 to 2

    • Sink cabinets with widths less than 30″ will have 1 door.

    • Sink cabinets with widths of 30″ or more will have 2 doors.

  • Door Hinge: Left Hinge, Right Hinge, or Double Doors

    • Widths > 24″ will have double doors.

  • Locks: Yes/No

  • Pulls: Aluminum or Wire Stainless Pull

Sink cleanroom cabinets can have undermount, drop-in, or integral sinks in the tops. While usually present in a run of base cabinetry, a sink cabinet can be placed a the end cap of a lab island to create an easily-accessible workstation.

WALL CLEANROOM CABINETS

  • Heights: 18″, 24″, 30″, 36″, 42″, 48″

  • Widths: 12″, 15″, 18″, 21″, 24″, 30″, 36″, 42″, 48″

  • Depths: 13″, 16″

  • Door Type: Solid, Acrylic, Glass, Open (no doors)

  • Door Hinge: Left Hinge, Right Hinge, or Double Doors

    • Widths > 24″ will have double doors.

  • Locks: Yes/No

  • Pulls: Aluminum or Wire Stainless Pull

As the name implies, these are your standard wall mounted cleanroom casework. Alternatively, these can be placed mounted to uprights as upper cabinetry for workbenches and islands.

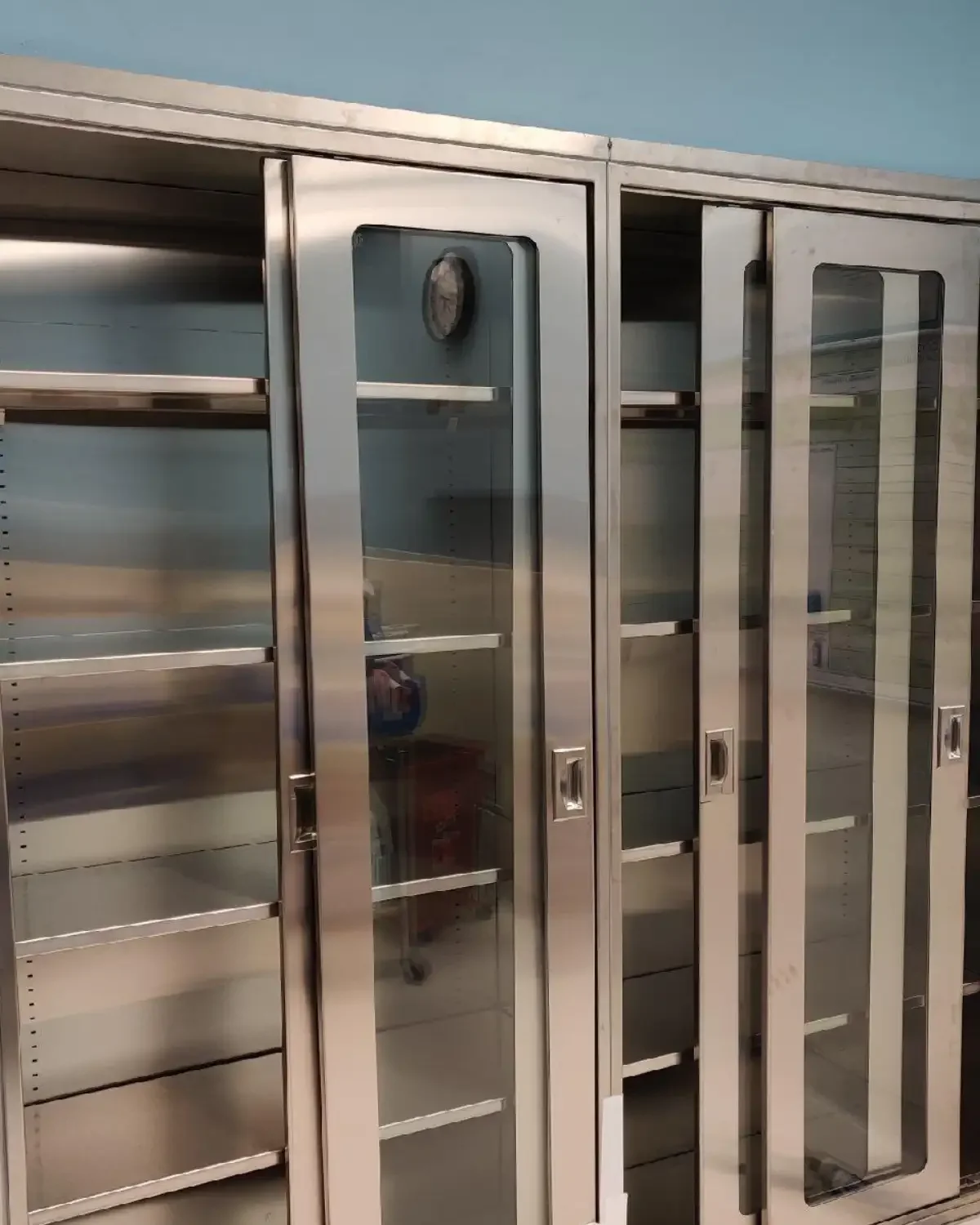

TALL CLEANROOM CABINETS

  • Heights: 84″

  • Widths: 12″, 15″, 18″, 21″, 24″, 30″, 36″, 42″, 48″

  • Depths: 13″, 16″, 18″, 22″

  • Door Type: Solid, Acrylic, Glass, Open (no doors)

  • Door Hinge: Left Hinge, Right Hinge, or Double Doors

    • Widths > 24″ will have double doors.

  • Locks: Yes/No

  • Pulls: Aluminum or Wire Stainless Pull

Tall cleanroom cabinets are the perfect storage solution for storing more in a smaller footprint.

WASTE CLEANROOM CABINETS

  • Heights: 29″, 32″, 35″, 41″

  • Widths: 15″, 18″, 21″, 24″, 30″, 36″, 42″, 48″, 52″, 58″

  • Depths: 18″, 22″

  • Drawers: 1 to 2

    • 1 drawer for widths ≤ 24”

    • 2 drawers for width ≥ 30”

  • Pulls: Aluminum or Wire Stainless Pull

Waste bin cleanroom cabinets provide a discreet way to throw away trash and debris to ensure your environment is always clean and clear.

CLEANROOM CABINET APRONS

  • Heights: 02″, 04″

  • Widths:

    • 02″ (without drawers): 24″-84″

    • 04″ (without drawers): 19″-90″

    • 04″ (with drawers): 24″-84″

  • Depths:

    • 02″ (without drawers): 18″, 22″”

    • 04″ (without drawers): 18″, 22″, 29″

    • 04″ (with drawers): 22″, 29″

  • Locks: Yes/No

    • Only for 04″ aprons with drawers

  • Pulls: Aluminum or Wire Stainless Pull

    • Only 04″ aprons with drawers

Aprons are a great addition to your casework to create knee space for working or a storage area for
mobile cabinets.

important NOTES

  • All dimensions listed in inches.

  • Cabinet configurations with 2 or more doors should not be less than 30″ wide

  • Cabinets with only 1 door cannot be more than 24″ wide

  • All heights DO NOT include countertop thickness. Please add that to the cabinet height to determine your final bench height.

lab casework catalog

To view more of our metal laboratory casework offerings, click to view our catalog below.

SEFA-8 TESTING

The metal we use in our lab casework is SEFA-8 tested to meet the standards for laboratory casework use.

cleanroom lab design

Many labs spaces manufacture and create products or conduct experiments that require specific environmental conditions during their processes. Cleanrooms, however, go beyond simply needing a controlled environment for conducting lab work.

Rather, cleanrooms are designed specifically to minimize the presence of foreign and unwanted particles during the experimentation and manufacturing of pharmaceuticals.

In this case, cleanrooms need high-quality, specific and dependable cabinets and storage units to house chemicals, tools and other equipment as well. At OnePointe Solutions we can create your ideal cleanroom cabinets to ensure the quality of your experiments are not compromised due to faulty cabinetry and storage.

For more information on cleanrooms and cleanroom design tips, check out our page:

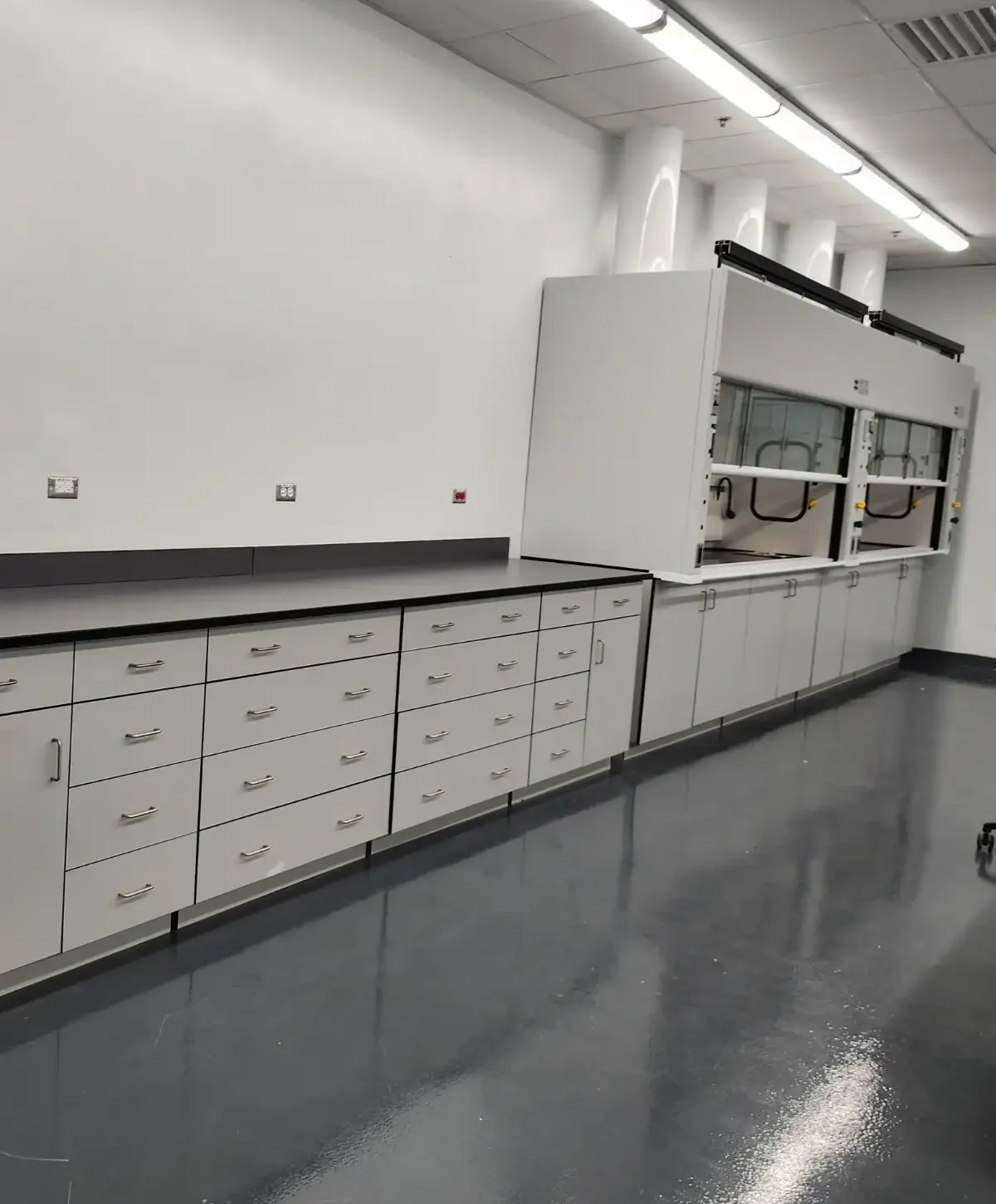

OUR CLEANROOM CABINETS

Browse through to see some of our past projects. No project is too big or small for us to handle. From wall cabinets and tall storage to base cabinets and mobile our cleanroom cabinet range is limitless. For more pictures of our cleanroom cabinet casework, head over to our client gallery.

CERTIFICATIONS

We take pride in following industry standards of quality and sustainability. All of our products are tested, certified and sourced in a manner consistent with latest guidelines.
