Medical cabinets

LAB READY

SANITARY

BUILT TO LAST

Storage solutions for medical fields.

Our medical cabinets are specifically designed to meet the storage and work surface needs of private practice rooms, clinics, hospital areas, pharmaceutical facilites and other medical fields alike. Choose from our range of materials, colors, sizes and accesories to make your medical cabinets ideal for your environemt.

PROJECT SPOTLIGHT

With every project we come across, we keep one goal in mind: to make an impact. BPS Technology, LLC gave us the opportunity to develop and design a new lab and growth chamber for their research initiatives.The project features sleek casework, storage solutions, a large lab island workstation set up and as mentioned before a custom growth chamber! Check out our filmed case study to get the inside scoop on the state-of-the-art laboratory.

TYPES OF LABORATORY CABINETS & CONFIGURATIONS

Notes:

  • We offer metal lab casework, stainless steel, wood, and PLAM
  • All dimensions listed in inches
  • Cabinet configurations with 2 or more doors should not be less than 30″ wide
  • Cabinets with only 1 door cannot be more than 24″ wide
  • All heights DO NOT include countertop thickness. Please add that to the cabinet height to determine your final bench height.

LAB BASE CABINETS

Base cabinets are standard floor-mounted casework, without any epoxy resin sinks, corner placement, or another mounting. This is often referred to as a lab bench, though the term is used by some to instead refer to table frames with epoxy tops.

Height: 29, 32, 35, 41

Width: 15, 18, 21, 24, 30, 36, 42, 48

Depth: 18, 22

Locks: Yes/No

TALL CABINETS

Tall cabinets offer the greatest vertical reach, and are great storage units for reagents and specimens.
Height: 84

Width: 15, 18, 21, 24, 30, 36, 42, 48

Depth: 13, 16, 18, 22

Locks: Yes/No

Fronts: Solid/Clear Acrylic

WALL SHELVING

Mounted wall shelves, able to span entire rooms if necessary.
Height: 18, 24, 30, 36, 42, 48

Width: 26, 32, 38, 44, 50, 56, 62, 68, 74,

80, 86, 92, 98, 104, 110, 116, 122, 128, 134,

140, 146, 152, 158, 164

Depth: 13, 16

Shelf Qty: 1, 2, 3

SINK CABINETS

Similar in all ways except this type of lab casework has undermount, drop-in, or integral sinks in the tops. These can be epoxy resin drop-in or undermount, and stainless steel or solid surface integrals. While usually present in a run of base cabinetry, a sink cabinet can be placed a the end cap of a lab island to create an easily-accessible workstation.
Height: 29, 32, 35, 41

Width: 30, 36, 42, 48

Depth: 18, 22

Configurations: 2 Door Only

Locks: Yes/No

MOBILE CABINETS

Most commonly used for underneath benches and desks, mobile cabinets are extremely high-quality solutions for modular labs that require flexibility for both research and education.
Height: 22, 25, 28, 31, 34, 37

Width: 15, 18, 21, 24, 30, 36, 42, 48

Depth: 19, 22

Locks: Yes/No

MODULAR REAGENT SHELVING

This type of shelving is commonly found attached to lab islands, and can be moved up and down by clicking into slotted uprights.
Height: 48

Width: 26, 32, 38, 44, 50, 56, 62, 68, 74,

80, 86, 92, 98, 104, 110, 116, 122, 128, 134,

140, 146, 152, 158, 164

Shelf Qty: 1, 2

WALL CABINETS

As the name implies, these are your standard wall mounted casework. Alternatively, these can be placed mounted to uprights as upper cabinetry for workbenches and islands.
Height: 18, 24, 30, 36, 42, 48

Width: 15, 18, 21, 24, 30, 36, 42, 48

Depth: 13, 16

Locks: Yes/No

Doors: Hinged/Sliding

Fronts: Solid/Clear Acrylic

SUSPENDED CABINETS

Suspend cabinets are fixed to the underside of our workbenches and islands. These are easy to reach at arms length, but are fixed in place and sacrifice the modularity of mobile cabinets.
Height: 05, 08, 11, 14, 17, 20, 23, 26,

29, 32, 35

Width: 15, 18, 21, 24, 30, 36, 42, 48

Depth: 19, 22

Locks: Yes/No

FIXED REAGENT SHELVING

These island shelves are fixed in place. Once installed, they cannot be moved without disassembling the island.
Height: 12, 24, 36

Width: 34-166 (6 INCH INCREMENTS)

Depth: 12, 18, 24

Lips: Yes/No

APRON

Sturdy steel panel to support stretches of countertops without base cabinets underneath.
Height: 04, 02

Width: 24-80 (1 INCH INCREMENTS)

Depth: 18, 22, 29

Drawer: 0, 1, 2

Locks: Yes/No

SERVICE CHASE

We can build all tables, benches, and islands with service chases that can provide connections for data, power, gas, and plumbing to the wall, floor, and ceiling outlets.
Height: 61-95 (1 INCH INCREMENTS)

Width: 12. 14, 16, 18, 20, 22, 24

Depth: 6, 8, 10

SCIENTIFIC CASEOWRK BROCHURE

Download

Medical Lab Cabinet Options

COUNTERTOPS

Chemicals, moisture, heat, and impact can all vary greatly from project to project. From stainless steel, to phenolic resin and epoxy resin, we offer chemical and odor resistant finishes that endure spills and stave off corrosion.

Every industrial space is different. If you have a surface in mind, we can help.

If you need help, we can suggest an optimal surface.

Epoxy Resin

Epoxy resin is the ideal solution for environments that have high possibilities of corrosion or moisture.
EXPLORE

phenolic resin

Phenolic resin meets the requirements of most laboratories with the added benefit of being chemical-, wear-, and water-resistant.
EXPLORE

stainless steel

As a nonporous surface, nothing can penetrate into this material. Bacteria, mold, and other common germs don’t stand a chance.
EXPLORE

ESD LAMINATE

ESD Laminate is specifically designed to prevent the discharge of built-up static electricity that can damage sensitive equipment.
EXPLORE

MAPLE BLOCK

In the material handling business, there’s no better than maple block. Maple works hard in factories, in kitchens, and on shipping and receiving docks around the world.
EXPLORE

HDPE

High-density polyethylene is lightweight, non-absorbent, and stain-free surface. HDPE is best used for food preparation.
EXPLORE

solicor-cr

Solicor-CR is a lab-grade surface material well suited for environments, where chemical resistance, durability and aesthetics are top priorities.
EXPLORE

solid surface

Wilsonart® Solid Surface countertops are great for use in many settings: office, retail, industrial, healthcare, or education and in certain laboratory settings. It is nonporous, seamless, and elegant.
EXPLORE

quartz

Quartz countertops are favored by designers in various commercial industries since quartz can easily withstand extended use, regular cleaning, and exposure to moderate heat, moisture, and most household/commercial cleaners. For more information contact us.

Granite

Granite countertops are an elegant, timeless, and extremely durable surface option. They bring any commercial or industrial space to life with its many colors and smooth finish. For more information contact us.

Corian

If you have never heard of solid surface, you may have heard of ‘Corian®’, the name of the original solid surface formula created by a DuPont in 1964. Works in the same settings just as solid surface for a countertop option.
EXPLORE

plastic laminate

Made to align perfectly with your target aesthetic, layout, and budget. From breakrooms and reception areas to conference rooms, classrooms and even laboratories, plastic laminate countertops complement virtually any environment it is in.
EXPLORE

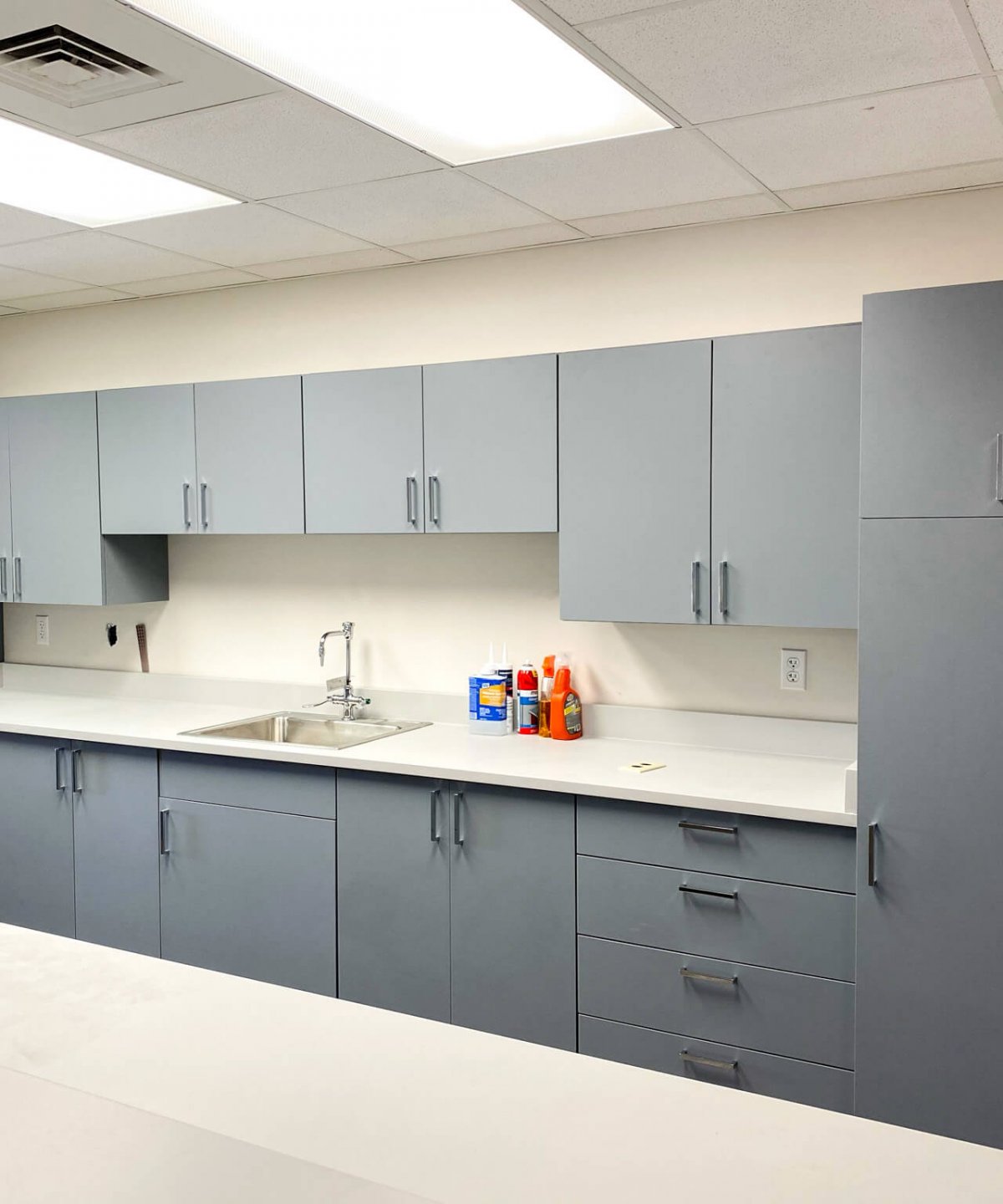

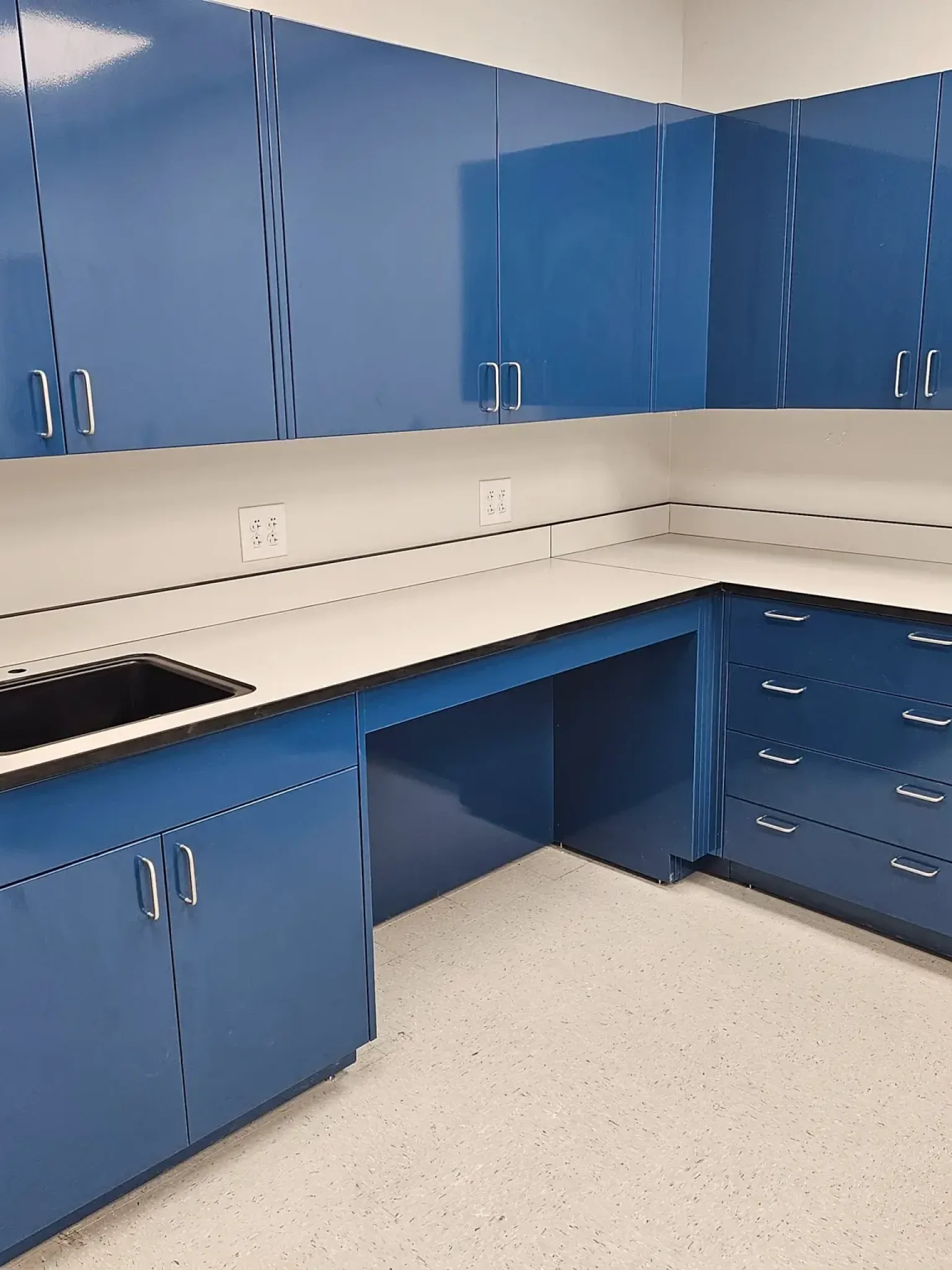

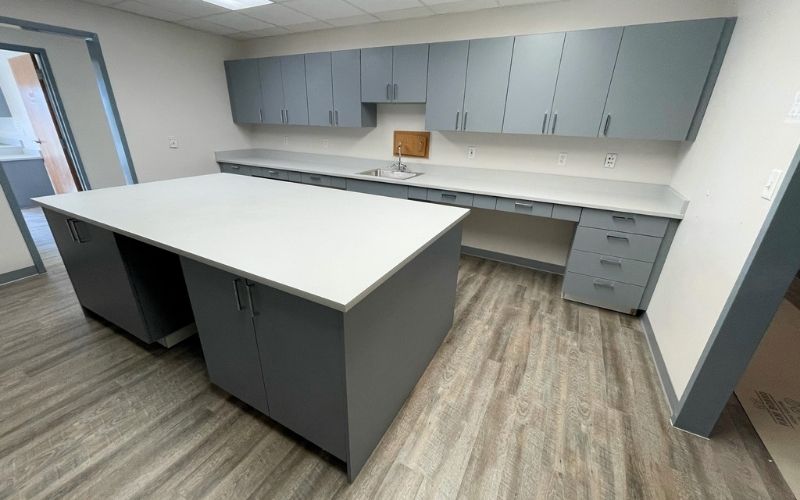

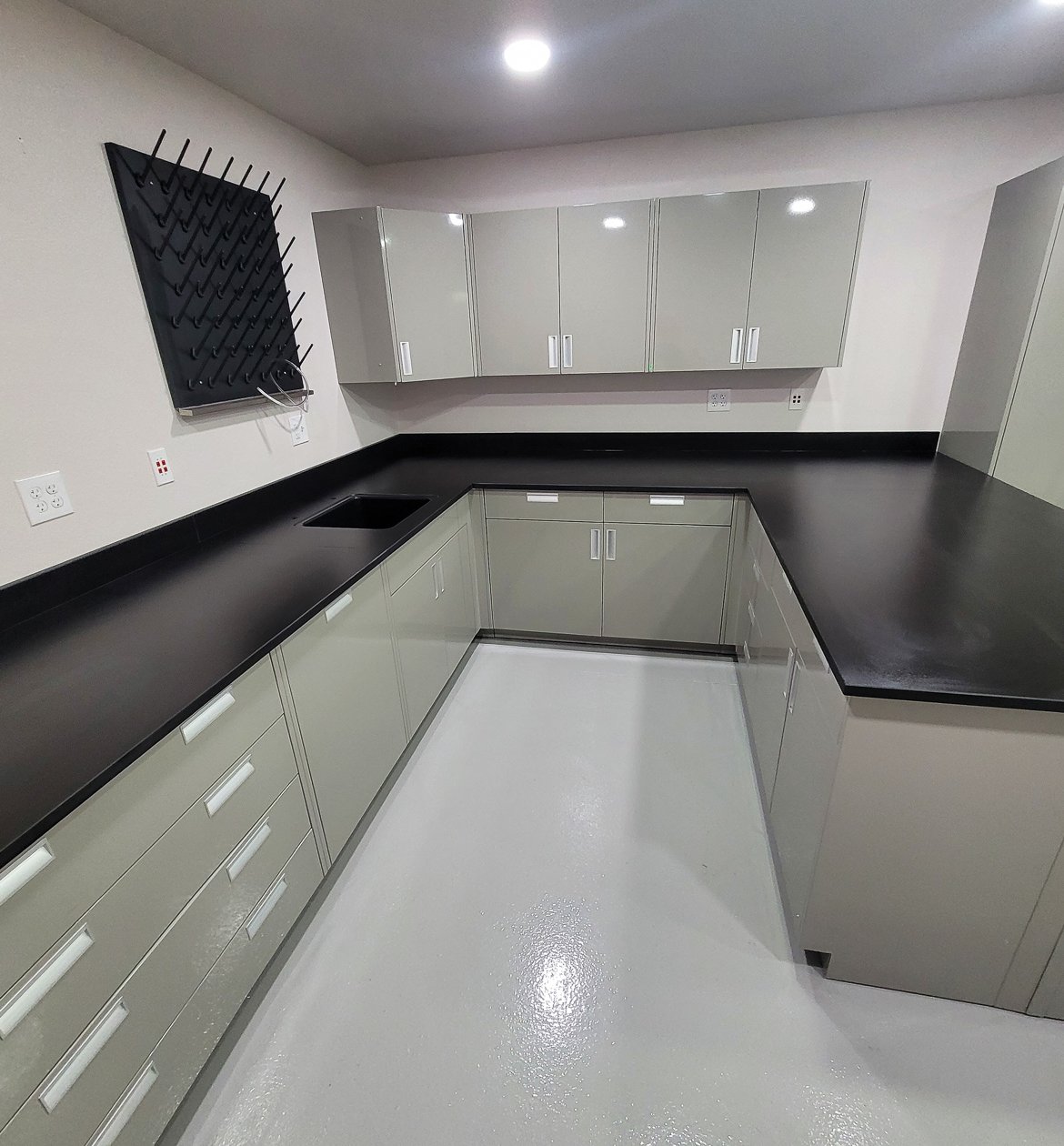

OUR WORK

Browse through to see some of our past projects. No project is too big or small for us to handle. From laninate fronts and casework to mobile cabinets and tables, our range is limitless. For more pictures of our casework capabilities, head over to our client gallery.

Need medical cabinets?

CERTIFICATIONS

We take pride in following industry standards of quality and sustainability. All of our products are tested, certified and sourced in a manner consistent with latest guidelines.
