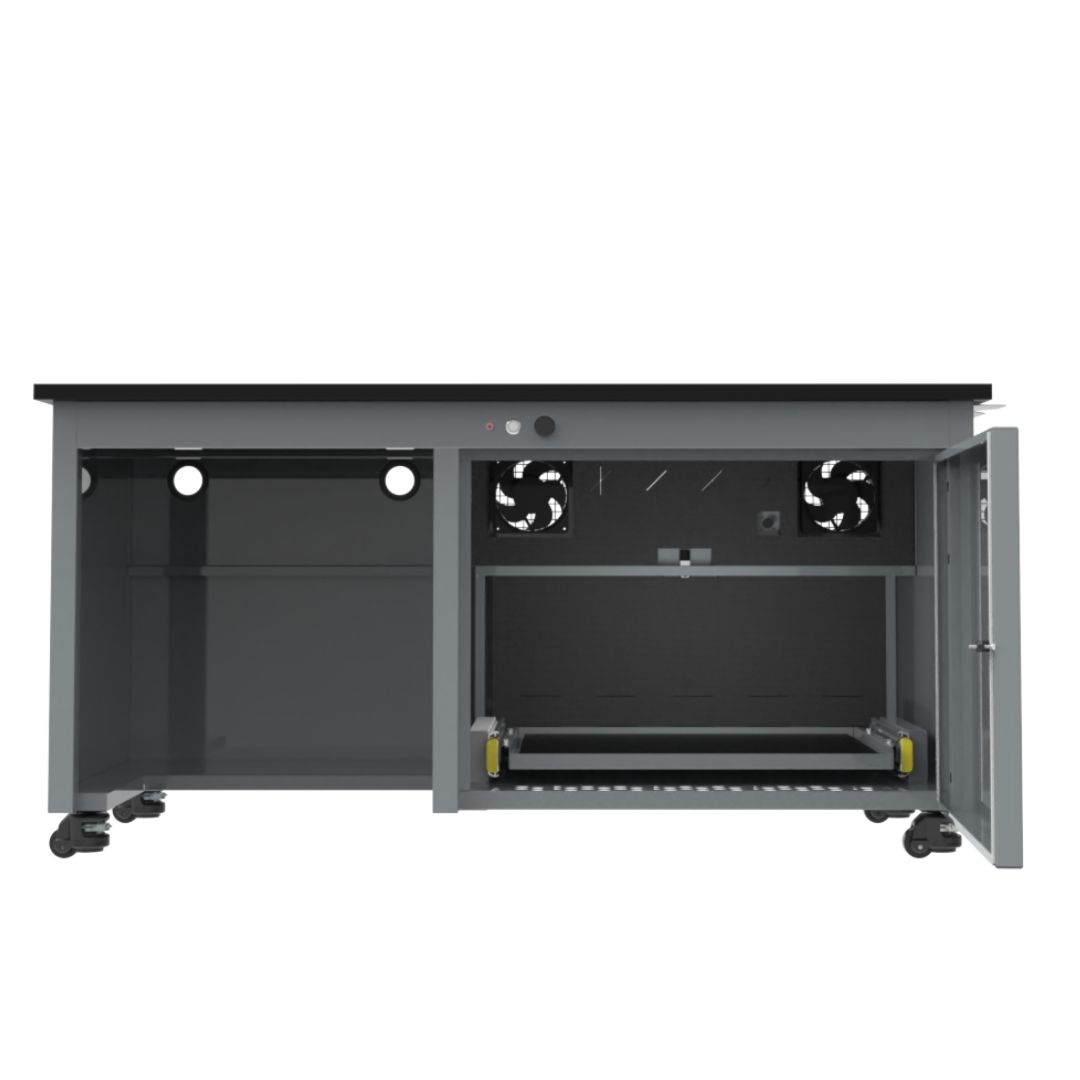

GC Bench Open
Full Screen

$0.00

Customize Your GC Bench For A Quote



White
White
Oyster White
Oyster White
Light Ivory
Light Ivory
Papyrus White
Papyrus White
Light Grey
Light Grey
Window Grey
Window Grey
Basalt Grey
Basalt Grey
Stone Grey
Stone Grey
Beige Grey
Beige Grey
Gentian Blue
Gentian Blue
Green Blue
Green Blue
Blue Green
Blue Green
Flame Red
Flame Red
Black Red
Black Red
Jet Black
Jet Black
Clear

Description

The GC Bench model has a GC kit which is a gas tank tie-down bracket that gets fastened to the right side of the workbench. There are (4) rivnuts on the right-side panel of every mass spec workbench so that ANY model of the quantum mass spec bench line can receive a GC kit.

The kit includes adjustable straps to secure the gas tank to the side of the workbench. (2) cylinders can be secured to the GC kit. The GC kit also allows the user to secure gas tanks to the right side of the mass spec bench.

Gas chromatography-mass spectrometry (GC-MS) is an application of mass spectrometry that requires cylinder storage tanks to be
located nearby.



Features

  • Standard 1″ Lab Grade Phenolic Resin (Black) & Top Tray Surface
  • Pull Out & Locking Pump Tray: 23.5” (W) x 21” D
  • Sound Dampening Foam
  • Temperature Sensors & Fail-Safe Alarm
  • Rear Mounted Power Supply
  • LED Light Start/Stop Switch
  • (2) 205 CFM Fans
  • (4) Grommet Holes
  • GDR Casters & Gas Cylinder Bracket
  • Removable Back Door
  • 5 Year Warranty

Technical Specs

  • Item: GC Bench
  • Height: 30″, 33″, 36″
  • Width: 60″, 72″, 84″, 96″
  • Depth: 30″, 34″
  • Work Surface: Lab Grade Phenolic Resin (Black)
  • Frame Material: Cold Rolled Steel (Powder Coated)
  • Assembly: Fully Welded
  • Weight Range: 331-502 lbs (varies based on configuration)
  • ESD Compatible: N/a
  • Cleanroom Compatible: N/a
