Compact GC Bench

Back To Mass Spec Benches
Compact GC Product Image zoom


Compact GC Angle 1 zoom


Compact GC Angle 2 zoom


Compact GC Angle 3 zoom


Compact GC Open zoom


Compact GC Back zoom


Compact GC Product Image

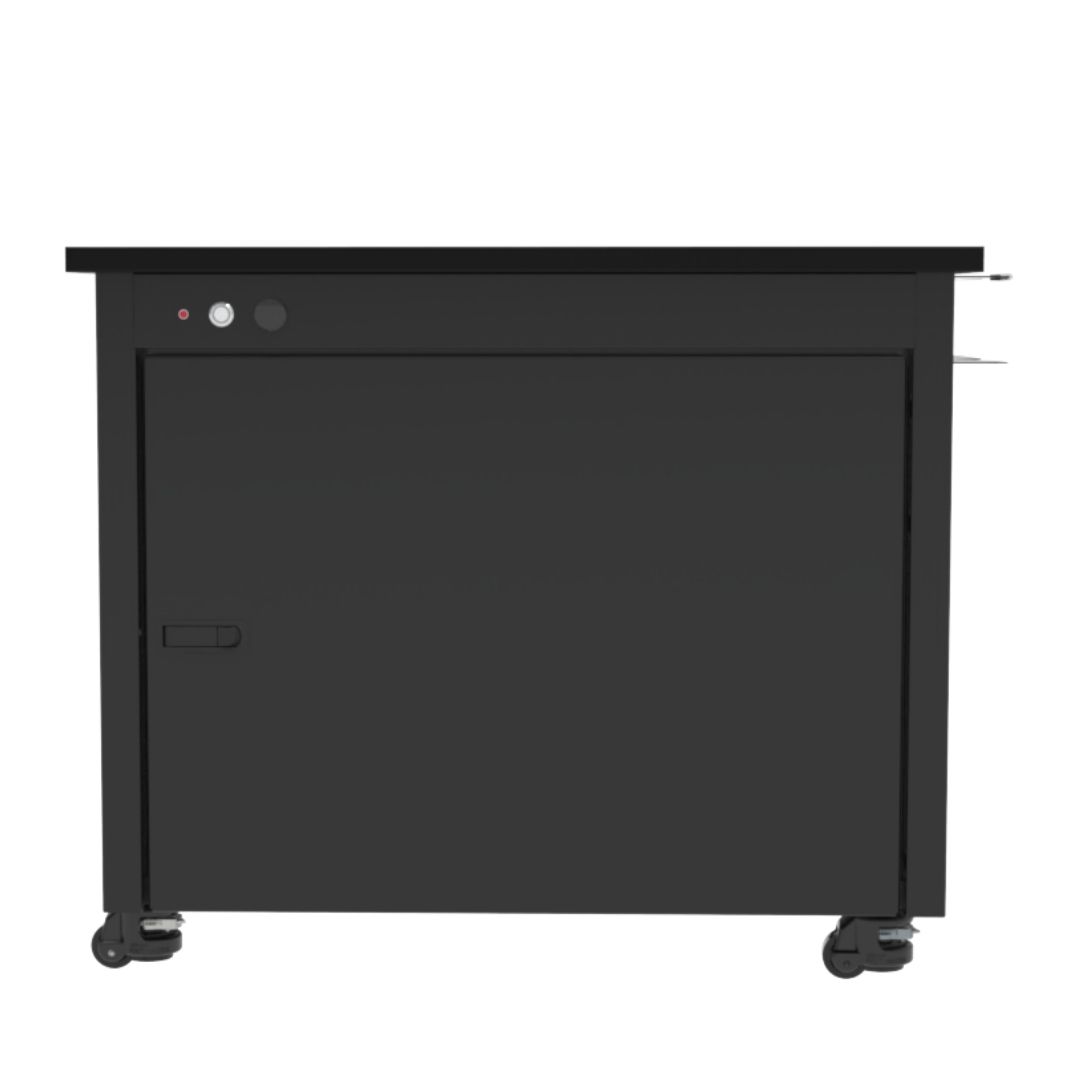

Compact GC Angle 1

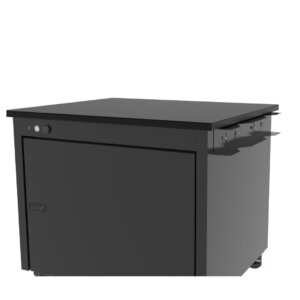

Compact GC Angle 2

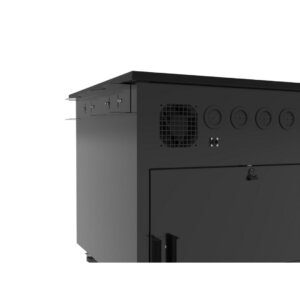

Compact GC Angle 3
Compact GC Open
Compact GC Back
Full Screen


Custome Your Compact GC Bench For A Quote



The Compact GC Bench, similar to our Compact Bench, has a GC kit which is a gas tank tie-down bracket that gets fastened to the right side of the workbench. There are (4) rivnuts on the right-side panel of every mass spec workbench so that ANY model of the quantum mass spec bench line can receive a GC kit.

The kit includes adjustable straps to secure the gas tank to the side of the workbench. (2) cylinders can be secured to the GC kit. The GC kit allows the user to secure gas tanks to the right side of the mass spec bench.

Gas chromatography-mass spectrometry (GC-MS) is an application of mass spectrometry that requires cylinder storage tanks to be located nearby.


  • Standard 1″ Lab Grade Phenolic Resin (Black) & Top Tray Surface
  • Pull Out & Locking Pump Tray: 23.5” (W) x 21” D
  • Sound Dampening Foam
  • Temperature Sensors & Fail-Safe Alarm
  • Rear Mounted Power Supply
  • LED Light Start/Stop Switch
  • Gas Cylinder Bracket
  • (2) 205 CFM Fans
  • (4) Grommet Holes
  • GDR Casters
  • Removable Back Door
  • 5 Year Warranty

Technical Specifications

  • Item: Compact GC Bench
  • Height: 30″ 33″, 36″
  • Width: 36″, 48″
  • Depth: 30″, 34″
  • Work Surface: 1″ Lab Grade Phenolic Resin (black)
  • Frame Material: Cold Rolled Steel (Powder Coated)
  • Weight Range: 232-336 lbs (varies based on configuration)
  • Assembly: Full-Welded
  • ESD Compatible: N/a
  • Cleanroom Compatible: N/a

SEFA-8 Certification

All OnePointe Solutions designed laboratories, laboratory furniture, and laboratory equipment are delivered to your lab having met the exceptionally high standards set by boards of laboratory professionals in order to be SEFA compliant so as to ensure a safe laboratory environment.

SEFA-8 Metal Test Report

SEFA-8 PLAM Test Report
