Compact Bench

Back To Mass Spec Benches
Compact Mass Spec Bench (Product Image) zoom

Hover

Compact Mass Spec Bench 1 zoom

Hover

Compact Mass Spec Bench 2 zoom

Hover

Compact Mass Spec Bench 3 zoom

Hover

Compact Mass Spec Bench 4 zoom

Hover

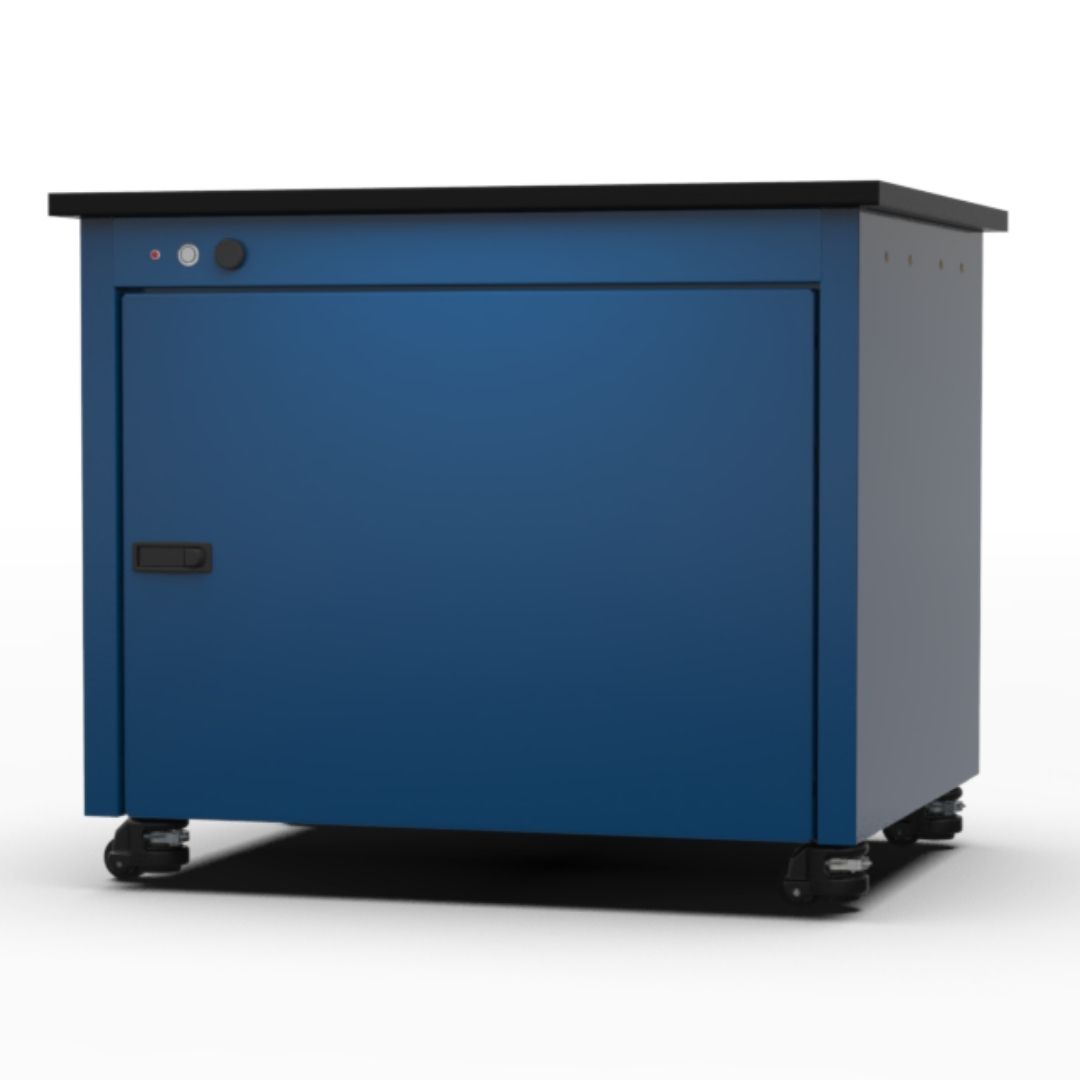

Compact Mass Spec Bench (Product Image)

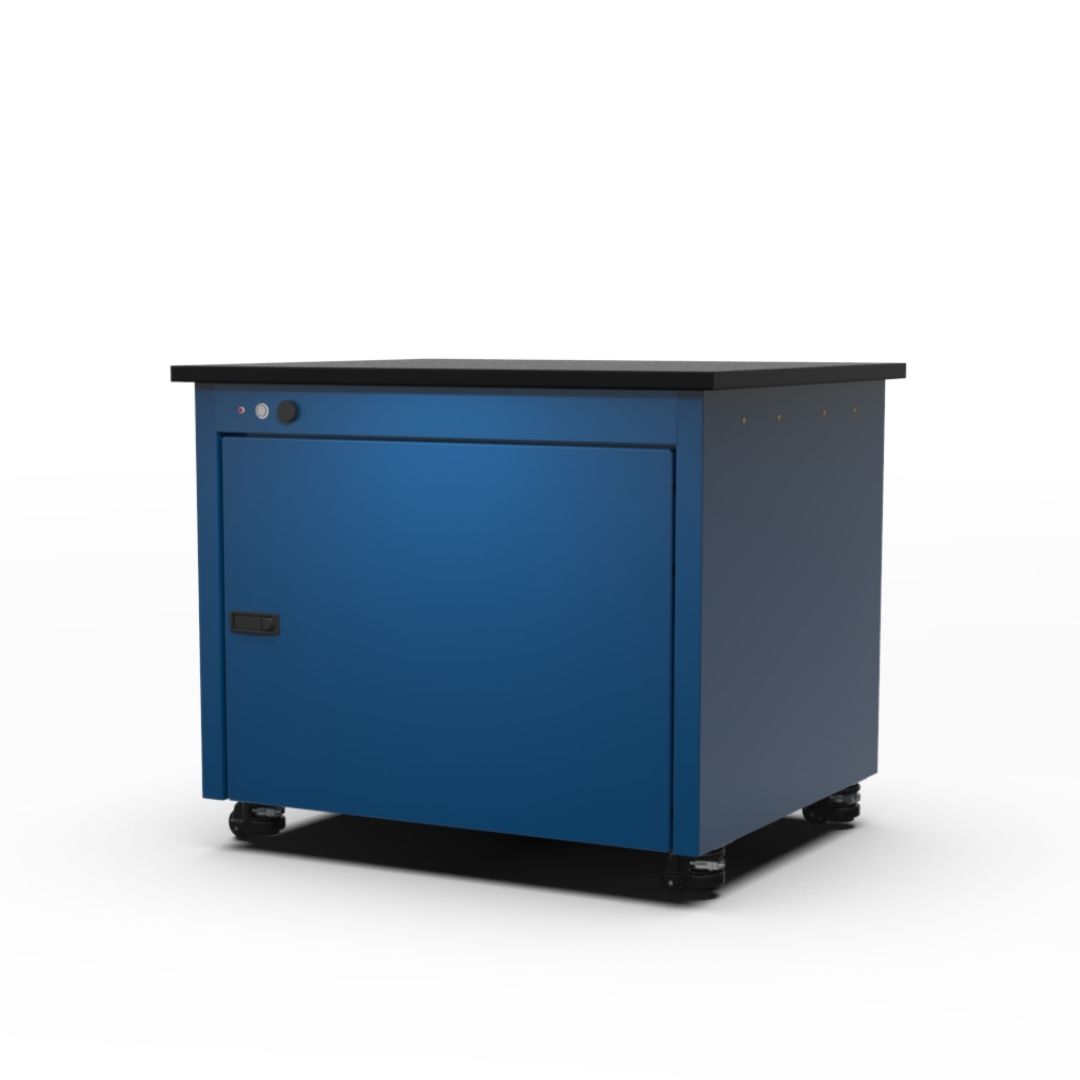

Compact Mass Spec Bench 1

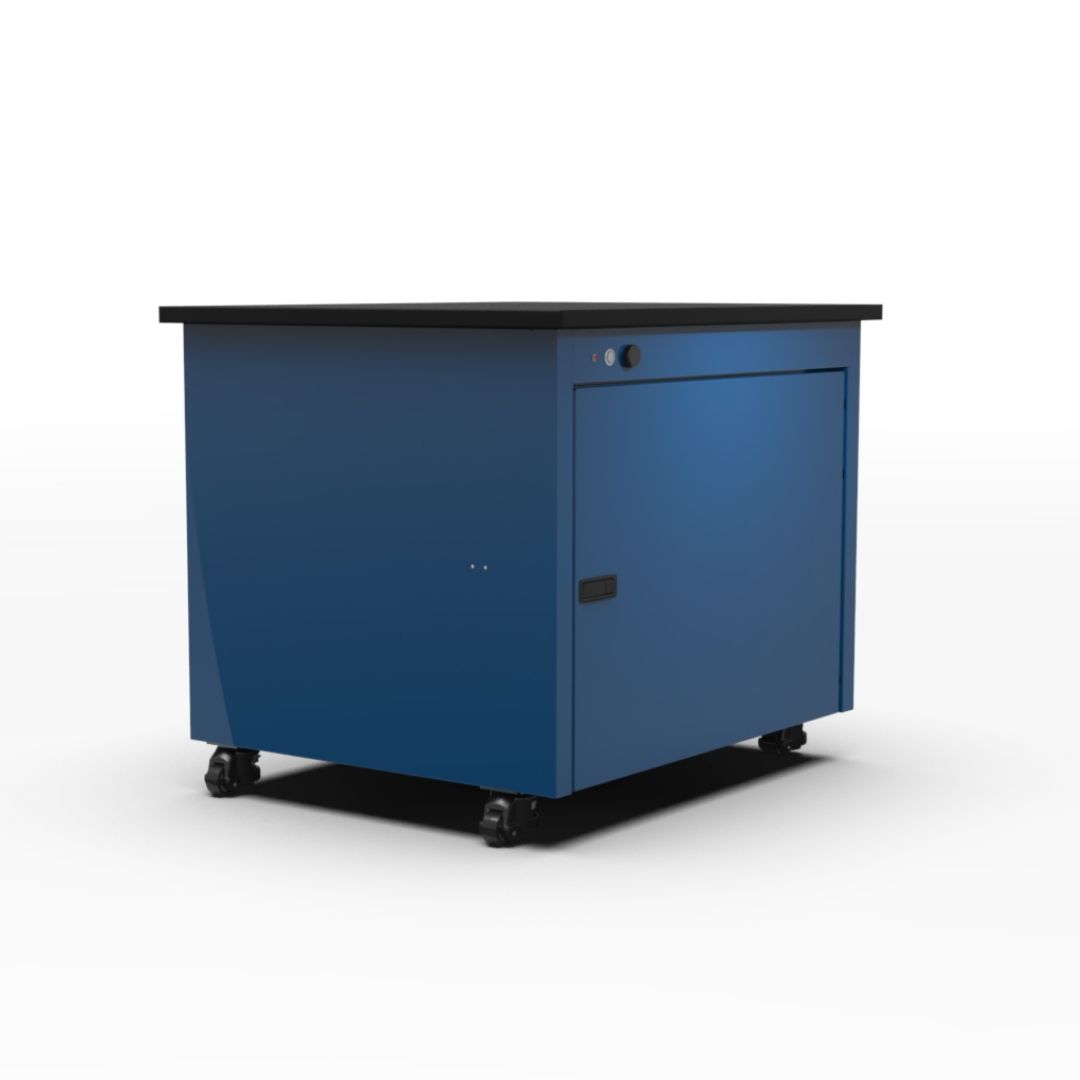

Compact Mass Spec Bench 2

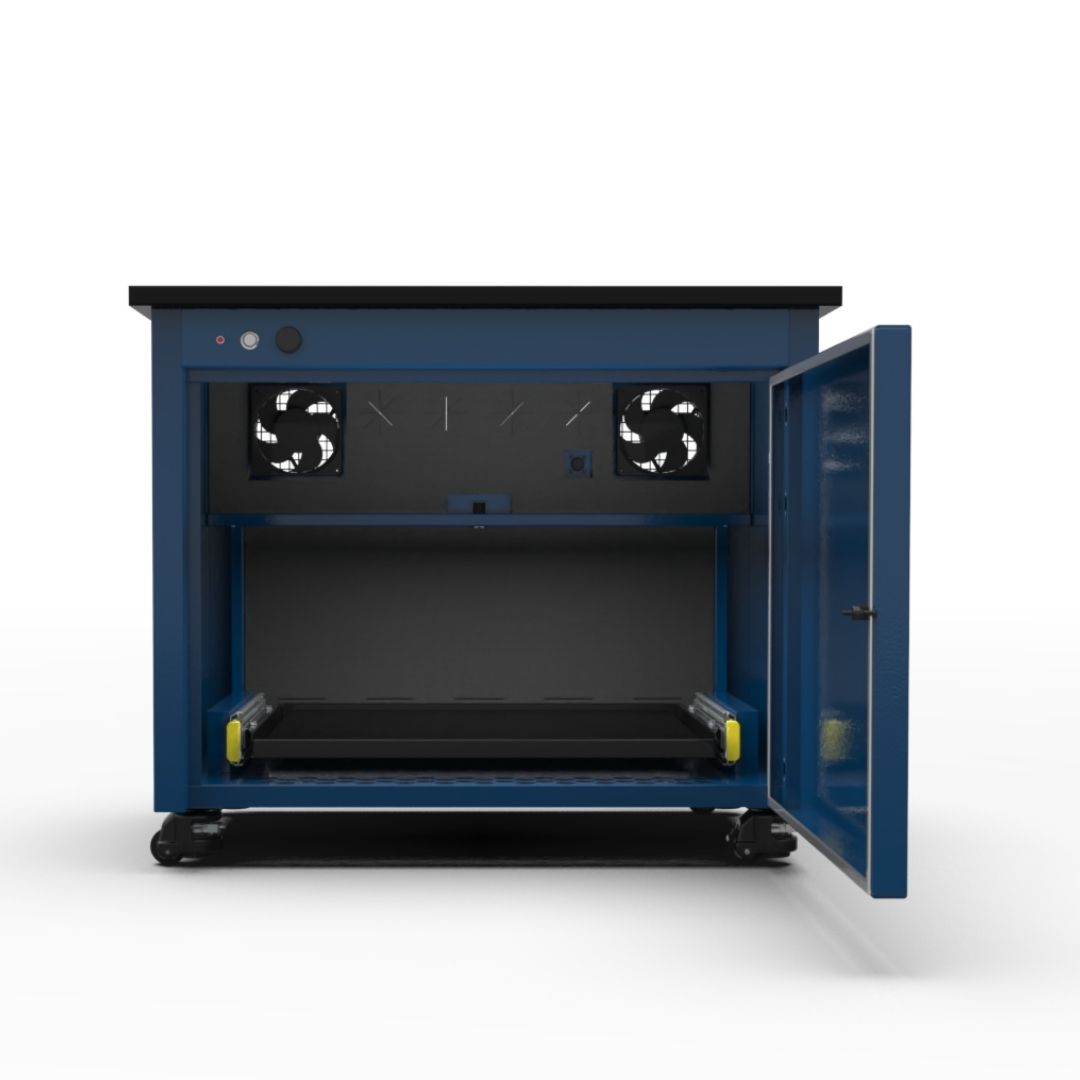

Compact Mass Spec Bench 3

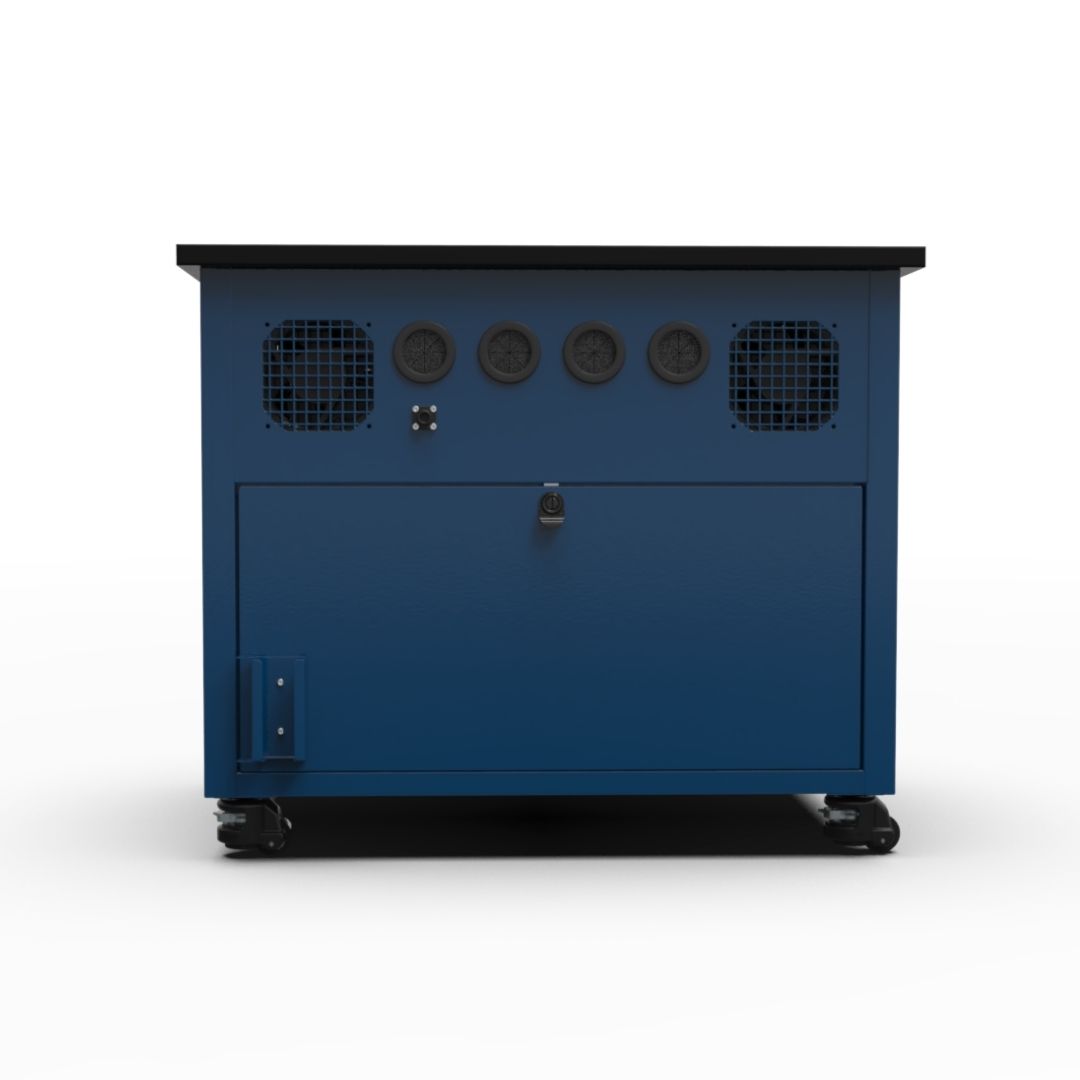

Compact Mass Spec Bench 4
Full Screen

$0.00

Customize Your Compact Bench For A Quote



Description

The Compact Bench is our most basic and smallest out of our mass spec workbench line. The 36” wide Compact Bench is a pump enclosure on wheels and the 48” wide Compact Bench has an 11” wide storage compartment to the left of the pump enclosure.

Though small, it can still perform the tasks needed when performing mass spectrometry. It features a 1″ Phenolic Resin (lab grade) work surface, GDR casters for mobility, a pull-out and locking pump tray, sound dampening foam, temperature sensors fans, alarms, LED lights, and even a power supply.

Made with cold-rolled steel, fully welded, and powder-coated to a variety of colors available, the Compact Bench can be customized to ideally fit your lab facility.



Features

  • Standard 1″ Lab Grade Phenolic Resin (Black) & Top Tray Surface
  • Pull Out & Locking Pump Tray: 23.5” (W) x 21” D
  • Sound Dampening Foam
  • Temperature Sensors & Fail-Safe Alarm
  • Rear Mounted Power Supply
  • LED Light Start/Stop Switch
  • (2) 205 CFM Fans
  • (4) Grommet Holes
  • GDR Casters
  • Removable Back Door
  • 5 Year Warranty

Technical Specifications

  • Item: Compact Bench
  • Height: 30″ 33″, 36″
  • Width: 36″, 48″
  • Depth: 30″, 34″
  • Work Surface: 1″ Lab Grade Phenolic Resin (Black)
  • Frame Material: Cold Rolled Steel (Powder Coated)
  • Assembly: Fully Welded
  • Weight Range: 349.88-490.63 lbs (varies based on configuration)
  • ESD Compatible: N/a
  • Cleanroom Compatible: N/a

SEFA-8 Certification

All OnePointe Solutions designed laboratories, laboratory furniture, and laboratory equipment are delivered to your lab having met the exceptionally high standards set by boards of laboratory professionals in order to be SEFA compliant so as to ensure a safe laboratory environment.

SEFA-8 Metal Test Report

SEFA-8 PLAM Test Report

Warranty

Our Warranty | OnePointe Solutions

Installation Services

Installation Planning

Once you have ordered with our company, you are assigned a project manager to help with every detail of the install process, from the manufacturing of casework and workbenches and cabinetry to payment and fulfillment. For more information on our installation planning click “installation planning” above.

Installation Process

To understand how our installation process works when coming to your facility, click “installation process” above.

Installation Site Prep

When it comes to installing your lab furniture, we strive for fast and quality service from the time of arrival to
completion. We are the last in, but the quickest out. To ensure maximum quality of our installation services,
we a guide of what we highly request the following for facilities to adhere to so that casework can be installed
efficiently and properly. Click “installation site prep” to continue.

Fees, Disclaimers & General Contractors

For details about our fees, disclaimers, and important information for general contractors click “fees, disclaimers & general contractors” above.

Supporting Materials

Mass Spec Informational

To learn more about our mass spec benches, click on the link above.

What To Expect

You have now inquired about furniture from OnePointe Solutions, now what? To understand how we work, we have
laid down the steps of our process to help answer questions you may have. Our goal is to provide customers with high-quality custom laboratory and commercial furniture that exceeds their expectations. We look forward to working with you to achieve your laboratory and commercial furniture needs.

Who We Are

Over a decade ago, OnePointe Solutions opened its doors as a provider of technology solutions to businesses within the central Texas area and has since become the leading manufacturer of custom laboratory furniture and industrial workbenches in the country. To learn more about us, click the link above.

Best of Our Work

Since we opened our doors, we have done hundreds of projects from big to small, complex to simple. Check out our lookbook to see some of our best work over the years.

RAL Color Brochure

Need to see what our colors look like in the field? Click the link above to give you a better perspective before you make a decision.
